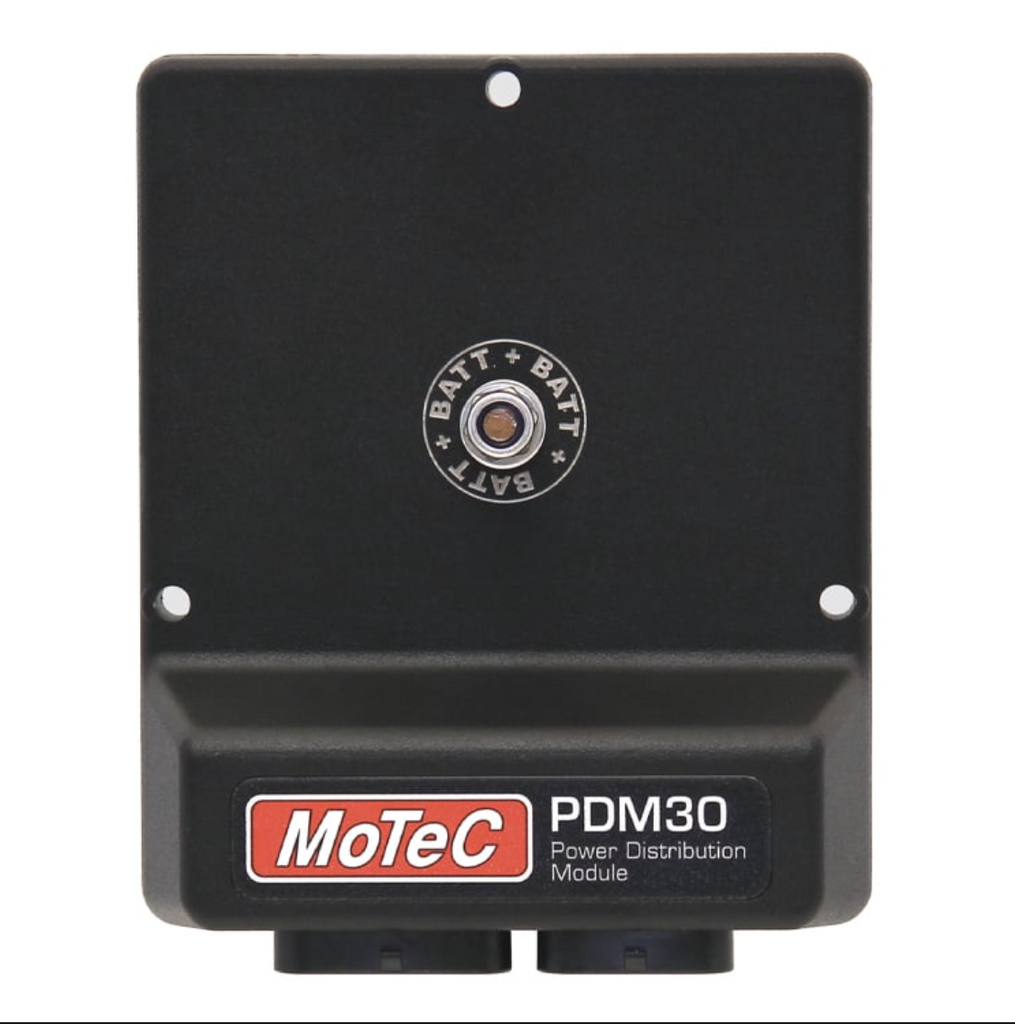

MoTeC’s new 30 output Power Distribution Module (PDM30) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.
The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight, while increasing reliability.
Outputs:
8 x 20 A outputs—20 A continuous, 115 A transient (typical)
22 x 8 A outputs—8 A continuous, 60 A transient (typical)
Inputs:
16 x Switch inputs
Communications:
1 x CAN
Diagnostic Information:
Output current and voltages
Input voltages
Error status
Case size:
108 x 128 x 39 mm
Weight:
270 grams
Connectors:
1 x 34 pin waterproof connector
1 x 26 pin waterproof connector
1 x M6 stud
